AF2 Electrical Panel Magnetic Field Shielding Material

AF2 Electrical Panel Magnetic Field Shielding Material

by Magnetic Induction and RF Shielding Solutions
$307.96 - $2,463.68
$307.96
$307.96 - $2,463.68
$307.96

Magnetic Field Shielding for Electrical Panels & Low-Frequency Sources

The MagInduct AF2 Magnetic Shielding System is a flexible metal shielding material designed to reduce low-frequency magnetic fields from electrical panels, breaker panels, transformers, high-voltage power lines, wiring, and other electrical equipment.

AF2 is particularly suited for 50/60 Hz magnetic field shielding applications, including residential and commercial electrical panels. Its flexible construction allows the material to be incorporated into walls and building assemblies while maintaining its shielding properties when bent or formed.

In addition to magnetic shielding, AF2 provides RF shielding, corrosion resistance, and fire-resistant properties for demanding residential, commercial, and industrial installations.

Electrical Panel Shielding

Magnetic fields from an electrical panel can extend beyond the physical dimensions of the panel itself. For a conservative installation, we recommend extending AF2 approximately 3 feet beyond the magnetic-field source in each direction, where practical.

Because every electrical installation is different, we recommend measuring the magnetic field around the panel before determining the final shielding area. Factors such as field strength, distance, panel configuration, electrical load, surrounding wiring, and construction can affect the amount of material required and the resulting attenuation.

Key Features:

  • 50/60 Hz Magnetic Field Shielding: Designed for low-frequency magnetic fields associated with electrical power systems.
  • Electrical Panel Applications: Suitable for breaker panels, service panels, electrical rooms, and nearby occupied spaces.
  • Multiple Applications: Can also be used for transformers, high-voltage power lines, wiring, and electrical equipment.
  • Flexible & Durable: Retains shielding properties when bent or formed.
  • RF Shielding: Provides additional shielding against radio frequency interference.
  • Corrosion-Resistant: Designed for long-term performance in challenging environments.
  • Fire-Resistant: Provides additional fire-resistant properties.

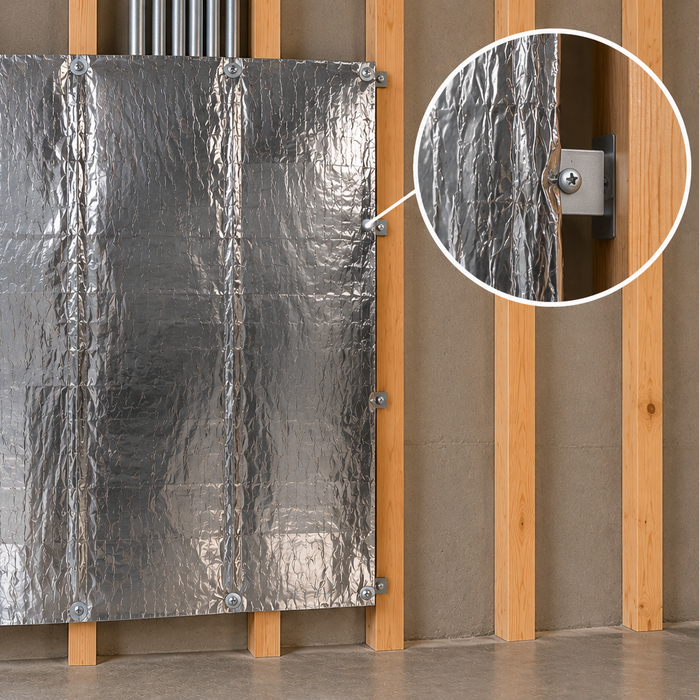

  • Customizable Installation: AF2 sections can be installed side by side or slightly overlapped to create continuous shielding coverage.

Installation Recommendation

For electrical panel applications, extend the shielding approximately 3 ft in each direction beyond the source where practical. Magnetic-field measurements should be taken before installation to identify the affected area and after installation to verify the achieved reduction.

For assistance determining the amount of AF2 required, contact us with your electrical panel dimensions and magnetic-field measurements taken around the panel.

More attenuation data and test reports are available upon request. Test report certified in the United States.
